Permanent Magnet Stepper Motor Operation


Full Step Operation

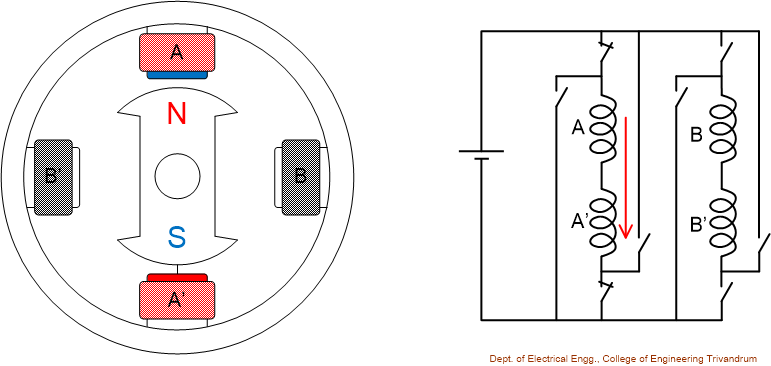

The rotor poles are permanent magnet type and the stator poles are excited to for either N ple or S pole. By giving a suitable sequence of swing of stator windings, the rotor totates due to the attraction between staror and rotor poles.
